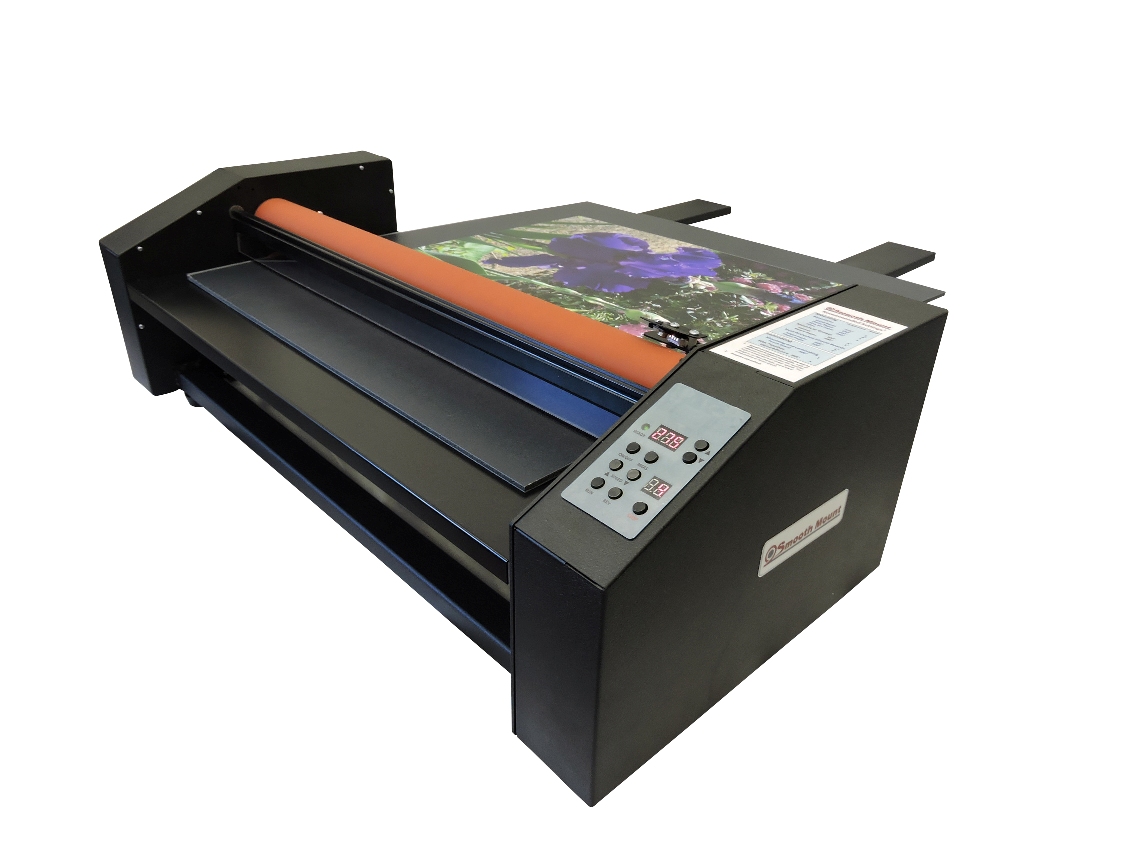

Smooth Mount 40" Laminator

Smooth Mount 40 inch laminator is a heated mounting pouch laminator. The Smooth Mount uses metal construction with high quality 2.5 inch diameter silicone rollers for professional results. Variable speeds and temperatures let the Smooth Mount Laminator mount prints at up to 5 feet per minute using MountCor boards. The Smooth Mount Laminator gives you ease of use with faster production speeds.

The Smooth Mount Laminators rolls are spring loaded and automatically adjust to all boards up to a 3/16" thick. Just insert your board and the Smooth Mount Laminator does the rest.

Smooth Mount Features (click on product sheet for specifications)

Rear extension legs to support finished Mounts

Silicon Covered 2.5" diameter rollers

Rugged all metal construction

Digital Controls

Includes Box of 25"x37" MountCor Adhesive boards

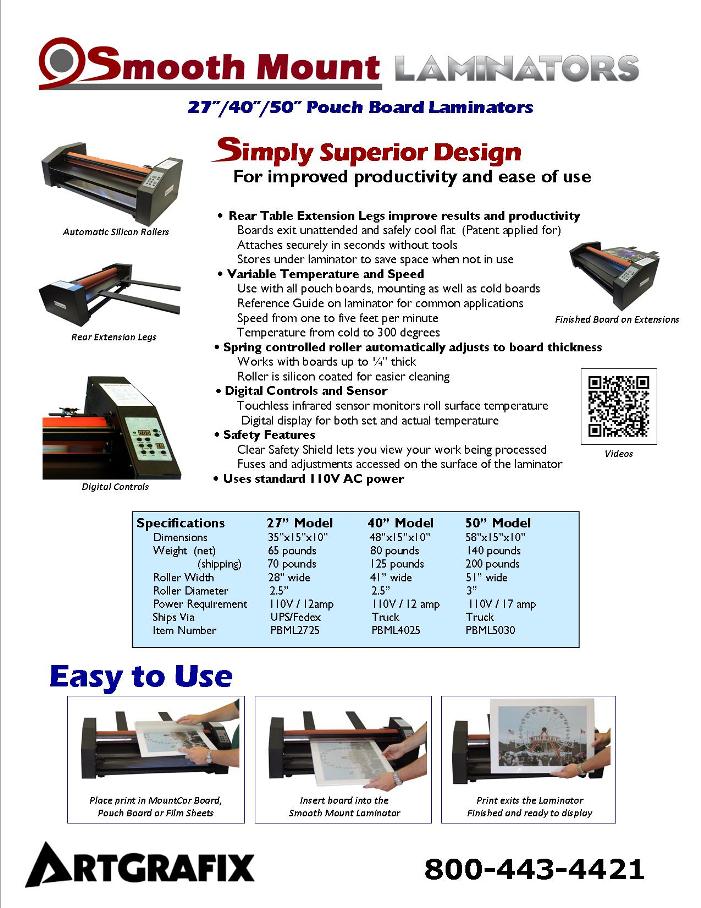

Product Sheet

See how easy the Smooth Mount Laminator is to use

... ...

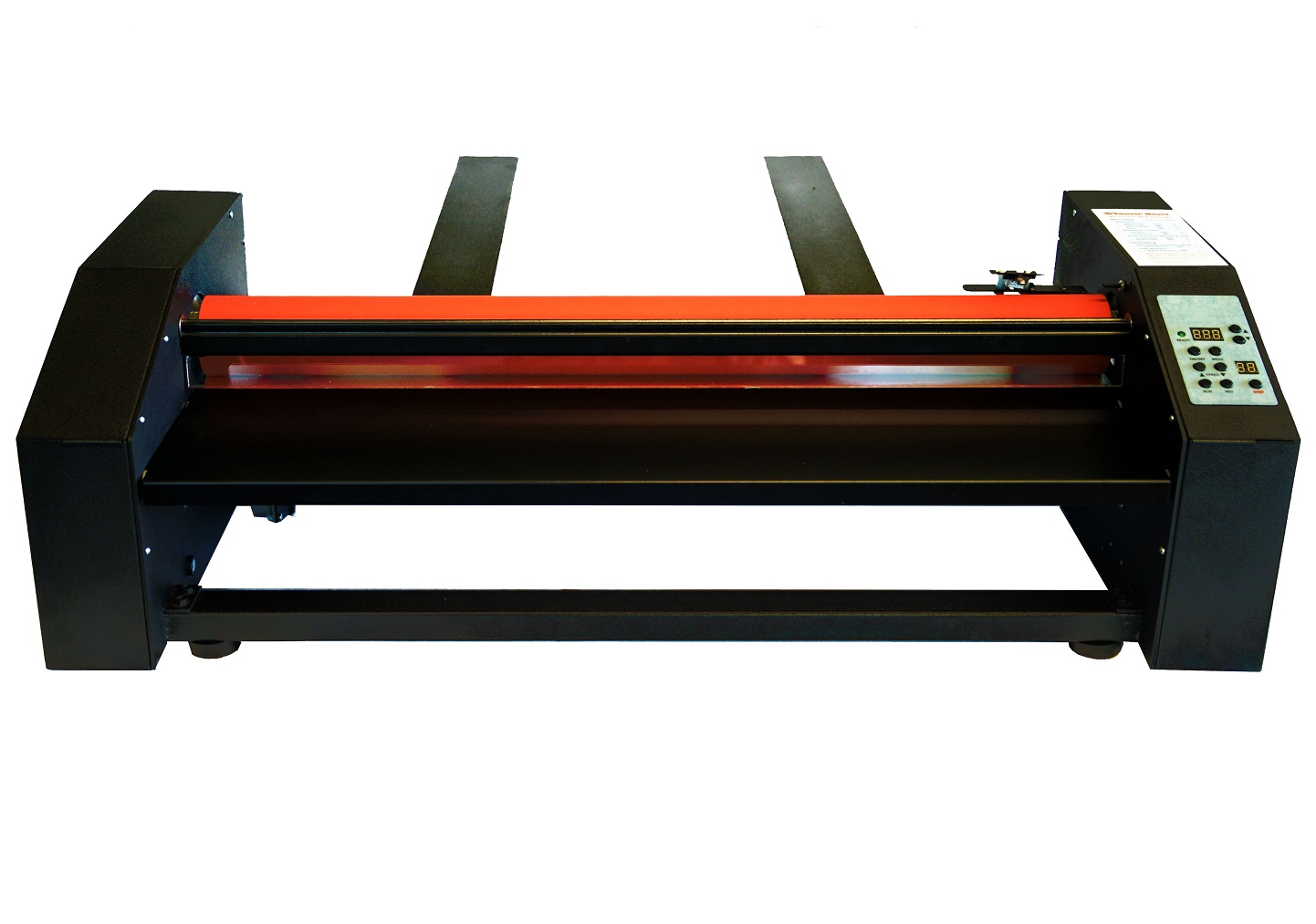

......Rear Table Extension Legs............Digital Controls............... Clear Safety Cover

Specifications

Working width 40 inches (roller width 41")

Maximum roll opening 3/16"

Automatic Spring-loaded roll Height adjustment

Metal Inkaloy long lasting heating element

Heat - Variable from cold to 300 degrees

Speed - Variable from 1 to 5 feet per minute

Power - 110v 12A - no special power required

2.5" diameter Roll covering - Silicon

Weight 125 pounds

Dimensions 46"x16"x12"

Warranty - 1 year/roller 90 days
