Phoenix 2700-DHP laminator
● Large Capacity: Laminates up to 27” wide
● Film Capacity: Accepts 1.5 to 10 mil
● Mounts on boards and pouch boards up to 1/4" thick
● Built-In Cooling Fans: For heavier films and increased workload
● Clear Polycarbonate Safety Shield: Prevents risk of injury
● Silicone Heated Laminating Rollers: Nonstick silicone rollers distribute heat evenly and are easy to remove and clean
● Ships by truck - standard charge $129 (liftgate and truck services extra charge)
● Click on picture for detailed information, literature and videos
Item Number 2700-DHP
● Film Capacity: Accepts 1.5 to 10 mil
● Mounts on boards and pouch boards up to 1/4" thick
● Built-In Cooling Fans: For heavier films and increased workload
● Clear Polycarbonate Safety Shield: Prevents risk of injury
● Silicone Heated Laminating Rollers: Nonstick silicone rollers distribute heat evenly and are easy to remove and clean
● Ships by truck - standard charge $129 (liftgate and truck services extra charge)
● Click on picture for detailed information, literature and videos
The Phoenix™ 2700-DHP Heat Roll Laminator-Production Model is a smart choice for production environments looking for an economical, easy-to-use unit. The compact tabletop design is great for smaller working areas.
Designed to offer maximum flexibility, the unit allows the use of either 1” or 21⁄4" core laminating films in thicknesses of 1.5 mil to 10 mil. The unit can also be gapped incrementally at settings of 1⁄16", 1⁄8", 3⁄16", and 1⁄4" to accomplish mounting on a large variety of substrates.
With safety and energy savings concerns in mind, the Phoenix™ 2700-DHP includes the latest innovations. Safety measures include: an advanced safety shield, a safety feed table, and a standby mode. To conserve energy, the machine will drop into a sleep mode (175°) if unit has been idle for 1⁄2 hour. If there is no activity on the unit for 3 hours, the heaters turn off. With a robust heavy-duty 24V motor and 21⁄4" heated rollers, this unit performs well above its price point!
Features:
●Large Capacity: Laminates up to 27” wide
●Adjustable Supply Roll Tension: Accommodates a variety of roll sizes and documents
●Film Capacity: Accepts 1.5 to 10 mil
●Built-In Cooling Fans: For heavier films and increased workload
●Auto Shut-Off Feature: Holds temperature at 175° after 1⁄2 hour of disuse
●Clear Polycarbonate Safety Shield: Prevents risk of injury
●Silicone Heated Laminating Rollers: Nonstick silicone rollers distribute heat evenly and are easy to remove and clean
●Easy Alignment of Top and Bottom Rolls: Ensures consistent results every time
●Feed Tray: Marked with paper guide standard widths on supply shaft
●Clear Polycarbonate Safety Shield: Prevents risk of injury, will not run with safety shield disengaged
●Chain and Sprocket Drive: Rugged metal components ensure superior durability
●Reverse Feature: Prevents jams and wrap-arounds
●Heavy-Duty 24V DC Motor: Capable of withstanding even the toughest working conditions
●Silicone Heated Laminating Rollers: Nonstick silicone rollers distribute heat evenly and are easy to remove and clean
●Easy Alignment of Top and Bottom Rolls: Ensures consistent results every time
●Feed Tray: Marked with paper guide standard widths on supply shaft
●Warranty: One Year Manufacturer's Warranty
Designed to offer maximum flexibility, the unit allows the use of either 1” or 21⁄4" core laminating films in thicknesses of 1.5 mil to 10 mil. The unit can also be gapped incrementally at settings of 1⁄16", 1⁄8", 3⁄16", and 1⁄4" to accomplish mounting on a large variety of substrates.
With safety and energy savings concerns in mind, the Phoenix™ 2700-DHP includes the latest innovations. Safety measures include: an advanced safety shield, a safety feed table, and a standby mode. To conserve energy, the machine will drop into a sleep mode (175°) if unit has been idle for 1⁄2 hour. If there is no activity on the unit for 3 hours, the heaters turn off. With a robust heavy-duty 24V motor and 21⁄4" heated rollers, this unit performs well above its price point!
Features:
●Large Capacity: Laminates up to 27” wide
●Adjustable Supply Roll Tension: Accommodates a variety of roll sizes and documents
●Film Capacity: Accepts 1.5 to 10 mil
●Built-In Cooling Fans: For heavier films and increased workload
●Auto Shut-Off Feature: Holds temperature at 175° after 1⁄2 hour of disuse
●Clear Polycarbonate Safety Shield: Prevents risk of injury
●Silicone Heated Laminating Rollers: Nonstick silicone rollers distribute heat evenly and are easy to remove and clean
●Easy Alignment of Top and Bottom Rolls: Ensures consistent results every time
●Feed Tray: Marked with paper guide standard widths on supply shaft
●Clear Polycarbonate Safety Shield: Prevents risk of injury, will not run with safety shield disengaged
●Chain and Sprocket Drive: Rugged metal components ensure superior durability
●Reverse Feature: Prevents jams and wrap-arounds
●Heavy-Duty 24V DC Motor: Capable of withstanding even the toughest working conditions
●Silicone Heated Laminating Rollers: Nonstick silicone rollers distribute heat evenly and are easy to remove and clean
●Easy Alignment of Top and Bottom Rolls: Ensures consistent results every time
●Feed Tray: Marked with paper guide standard widths on supply shaft
●Warranty: One Year Manufacturer's Warranty
See how easy the Phoenix DHP Laminator is to use
...
...

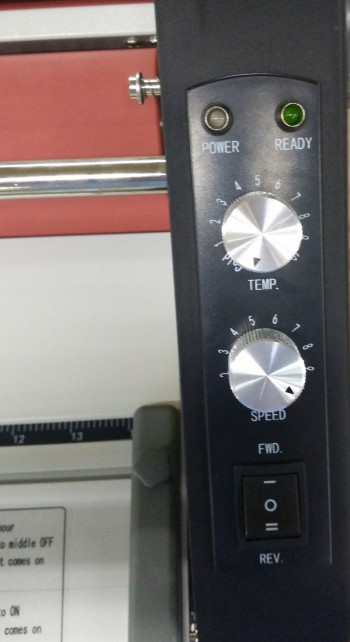

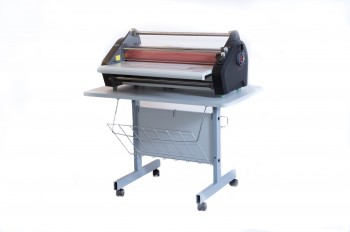

......2700 Stand............Digital Controls............... Alignment Supply Shaft
